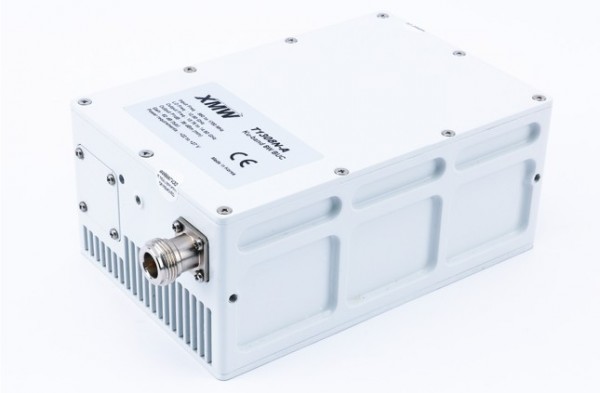

Ku-band 16W BUC Mobility
| Part number | MM-T1316G MM-T1416G |
|---|---|
| Input Frequency | 950 - 1700 MHz 950 - 1450 MHz |
| LO Frequency | 12.8 GHz 13.05 GHz |
| Output Frequency | 13.75 - 14.5 GHz 14.0 - 14.5 GHz |
| Output Power | 16W (42dBm) @Psat |
| Phase Noise @1KHz | -75dBc |
| Gain | 65dB Δ15dB 0.5dB step |
| AC/DC Power | +48VDC 85W |
Ku-band 16W BUC Mobility
MM-T1316G. MM-T1416G
MM-T1316G. MM-T1416G
첨부파일
- Ku-band 16W BUC_MM-T1316GMM-T1416G_V1.1_2605.pdf (355.4K) 2회 다운로드 | DATE : 2026-07-28 14:16:09
