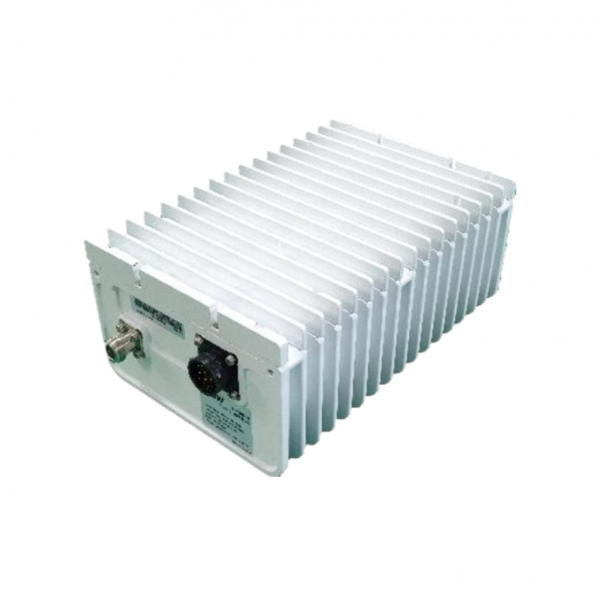

X-band 10W BUC (fanless)
| Part number | T8010 |
|---|---|
| Input Frequency | 950 - 1450 MHz |
| LO Frequency | 6.95 GHz |
| Output Frequency | 7.9 - 8.4 GHz |
| Output Power | 10W (40dBm) @P1dB |
| Phase Noise @1KHz | -73dBc |
| Gain | 65dB Δ15dB 0.5dB step |
| AC/DC Power | +24VDC 90W |
T8010 X-band 10W BUC
첨부파일
- X-band 10W BUC_T8010_V1.7_2608.pdf (376.1K) 25회 다운로드 | DATE : 2026-08-25 16:57:01
