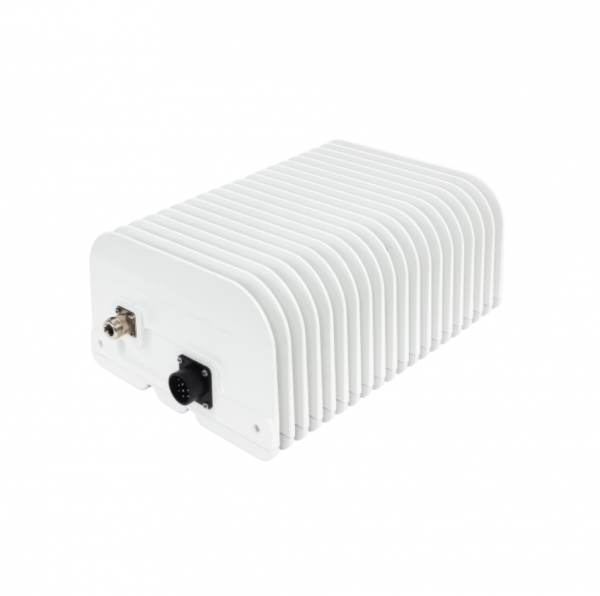

Ka-band 10W BUC (fanless)
| Part number | T2710 T2810 |
|---|---|
| Input Frequency | 1052 - 1788 MHz 972 - 1871 MHz |
| LO Frequency | 26.6 GHz 27.2 GHz |
| Output Frequency | 27.652 - 28.388 GHz 28.172 - 29.071 GHz |
| Output Power | 10W (40dBm) @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 65dB Δ15dB 0.5dB step |
| AC/DC Power | +48VDC 70W |
T2710, T2810
Ka-band 10W BUC
Ka-band 10W BUC
첨부파일
- Ka-band 10W BUC_T2710T2810_V1.5_2608.pdf (400.6K) 10회 다운로드 | DATE : 2026-08-25 16:35:28
