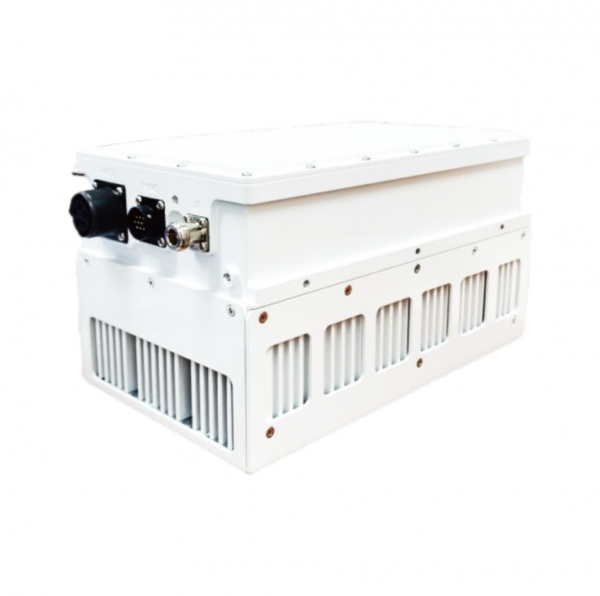

Ku-band 80W BUC (GaN)
| Part number | T1380G T1480G |
|---|---|
| Input Frequency | 950 - 1700 MHz 950 - 1450 MHz |
| LO Frequency | 12.8 GHz 13.05 GHz |
| Output Frequency | 13.75 - 14.5 GHz 14.0 - 14.5 GHz |
| Output Power | 80W (49dBm) @Psat |
| Phase Noise @1KHz | -80dBc |
| Gain | 80dB Δ15dB 1dB step |
| AC/DC Power | +48VDC 600W |
T1380, T1480 Ku-band 80W BUC (GaN)
첨부파일
- Ku-band 80W BUCGaN_T1380T1480_V1.1_2608.pdf (517.9K) 10회 다운로드 | DATE : 2026-08-25 16:56:06
