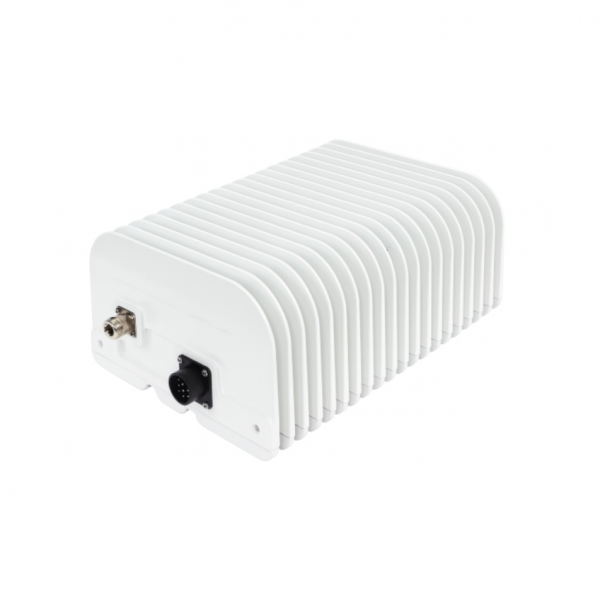

Ka Dual-band 10W BUC (fanless)
| Part number | TD3010 |
|---|---|
| Input Frequency | 1000 - 2000 MHz for each band |
| LO Frequency | 28.0 GHz 29.0 GHz |
| Output Frequency | 29.0 - 30.0 GHz 30.0 - 31.0 GHz |
| Output Power | 10W (40dBm) @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 65dB Δ15dB 0.5dB step |
| AC/DC Power | +48VDC 70W |
TD3010
Ka Dual-band 10W BUC
Ka Dual-band 10W BUC
첨부파일
- Ka Dual-band 10W BUC_TD3010_V1.7_2608.pdf (399.7K) 11회 다운로드 | DATE : 2026-08-25 16:37:55
