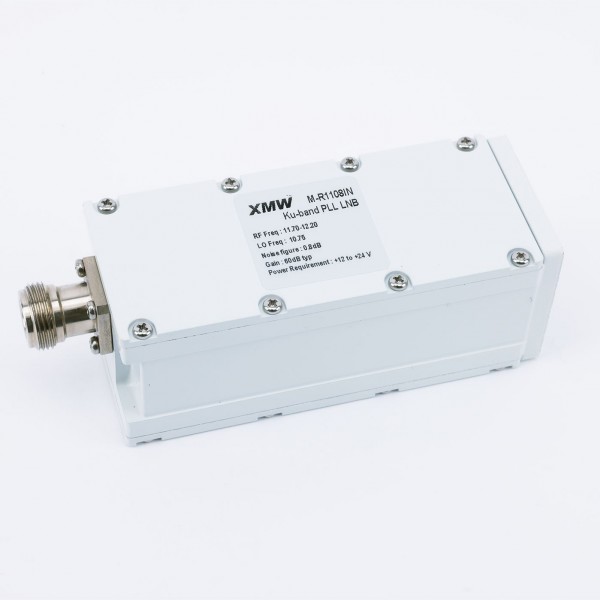

Ku-band INT LNB Mobility
| Part number | M-R1000I |
|---|---|
| Input Frequency | A: 11.7 - 12.2 GHz A1: 11.7 - 12.2 GHz A2: 11.7 - 12.6 GHz A3: 11.7 - 12.75 GHz B: 12.25 - 12.75 GHz B1: 12.2 - 12.7 GHz B2: 12.2 - 12.75 GHz B3: 12.0 - 12.75 GHz C: 10.95 - 11.7 GHz C1: 10.7 - 11.7 GHz D: 11.45 - 11.95 GHz E: 11.45 - 12.2 GHz |
| LO Frequency | 10.75 GHz 10.678 GHz 10.75 GHz 10.75 GHz 11.3 GHz 11.25 GHz 11.25 GHz 11.05 GHz 10.0 GHz 9.75 GHz 10.5 GHz 10.5 GHz |
| LO Stability | ±5 to ±25 KHz |
| NF / NT | 0.7 - 0.9dB |
| Phase Noise @1KHz | -75dBc |
| Gain | 60dB ±2dB max |
M-R1000IA*
Ku-band INT LNB Mobility
*Other bands are available
Ku-band INT LNB Mobility
*Other bands are available
첨부파일
- Ku-Band INT LNB, Mobility_M-R1000I_V1.2_2507.pdf (201.9K) 12회 다운로드 | DATE : 2025-10-03 09:54:33
