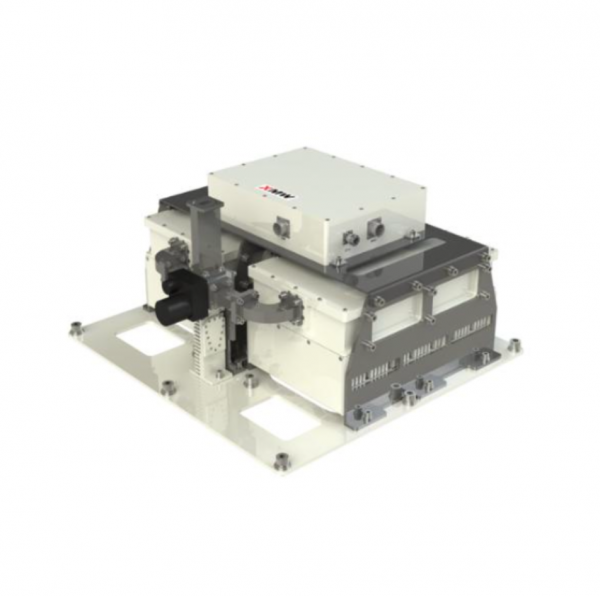

BUC 1:1 Ku-band 100W
| Part number | RDT13100G-A-OC RDT14100G-A-OC |
|---|---|
| Configuration | BUC 1:1 Ku-band 100W |
| Input Frequency | 950 - 1700 MHz 950 - 1450 MHz |
| LO Frequency | 12.8 GHz 13.05 GHz |
| Output Frequency | 13.75 - 14.5 GHz 14.0 - 14.5 GHz |
| Output Power | 50dBm @Psat |
| Phase Noise @1KHz | -75dBc |
| Gain | 80dB |
| Power | +48VDC 650W |
RDT13100G-A-OC
RDT14100G-A-OC
RDT14100G-A-OC
첨부파일
- Ku-band 100W BUC 1-1 System_RDT13100G-A-OC RDT14100G-A-OC_V1.0_2601.pdf (553.3K) 3회 다운로드 | DATE : 2026-07-15 10:04:39
