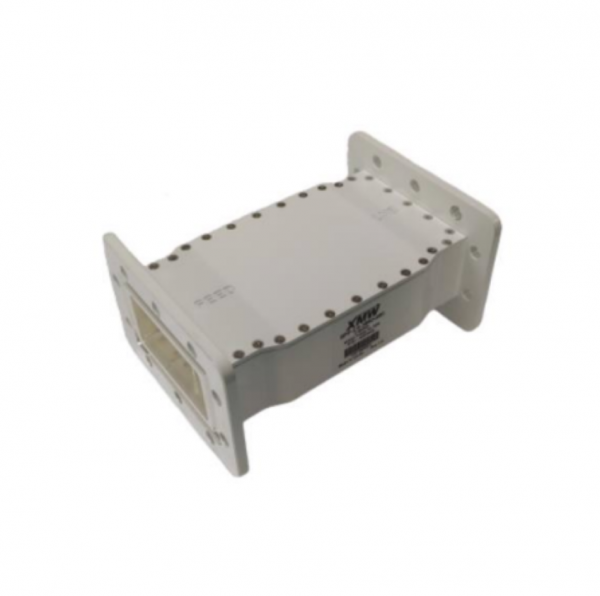

C-band BPF
| Part number | BPF-CX-3950-500 BPF-CX-3960-480 BPF-CX-4000-400 BPF-CX-4010-380 BPF-CX-4050-300 BPF-CX-4100-200 |
|---|---|
| Frequency | 3.7 - 4.2 GHz 3.72 - 4.2 GHz 3.8 - 4.2 GHz 3.82 - 4.2 GHz 3.9 - 4.2 GHz 4.0 - 4.2 GHz |
| Bandwidth | 500 MHz 480 MHz 400 MHz 380 MHz 300 MHz 200 MHz |
| In-band IL | 1.7dB 1.7dB 1.5dB 1.5dB 1.4dB 1.3dB |
| Rejection | Refer to spec sheet |
| IL @10MHz | N/A |
| In / Out | CPR229 |
BPF-CX-CF-BW
C-band BPF
C-band BPF
첨부파일
- BPF-CX-CF-BW-C-band BPF.pdf (276.8K) 5회 다운로드 | DATE : 2025-10-03 11:35:12
