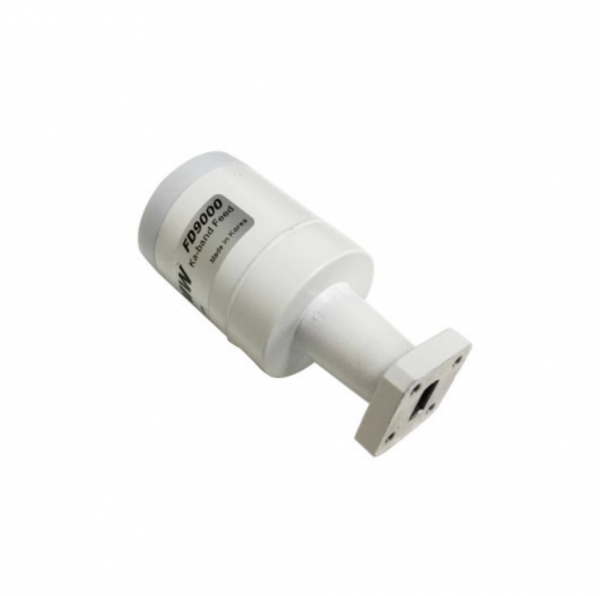

Ka-band Feed
| Part number | FD9000 |
|---|---|
| Frequency | L: 18.2 - 20.2 GHz H: 20.2 - 22.2 GHz |
| Input VSWR | 2.0 : 1 |
| Gain | 15dBi |
| Gain Flatness | ±1.5dBi |
| 3dB Bandwidth | ±15° |
| Input WG | Circular |
| Output WG | WR42 |
FD9000H
Ka-band Feed
Ka-band Feed
첨부파일
- FD9000H-Ka-band Feed.pdf (376.4K) 1회 다운로드 | DATE : 2025-10-03 11:43:36
