BUC
XMW's Block Up Converters (BUC) and Solid-State Power Amplifiers (SSPA) ensure superior performance and optimized output for satellite communication across GEO, MEO, and LEO constellations. Our extensive product line, spanning up to 100W and covering all frequency bands from C to Ka, provides customers with a convenient range of options. In addition to our standard product line, XMW introduces the AirBUCTM airborne series. Tailored for airborne applications such as drones, Urban Air Mobility (UAM), and commercial and military planes, this specialized series extends the same commitment to excellence, offering reliable and efficient performance in diverse airborne scenarios.

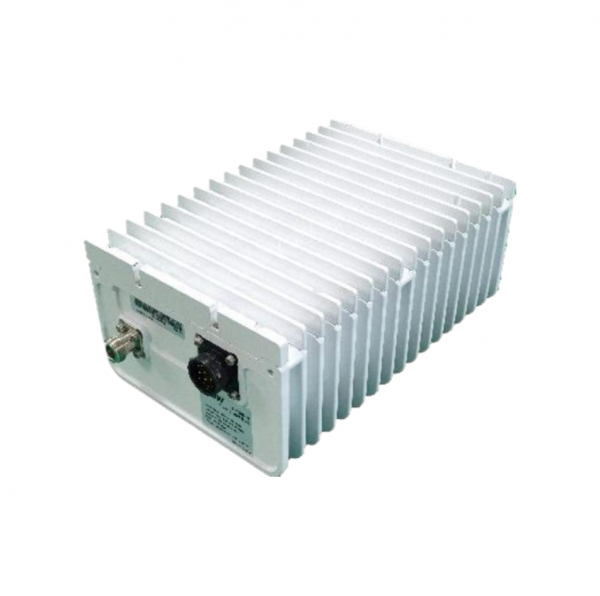

| Part number | T8010 |
|---|---|
| Input Frequency | 950-1450MHz |
| LO Frequency | 6.95GHz |
| Output Frequency | 7.90-8.40GHz |
| Output Power | 10W (40dBm) |
| Phase Noise @1KHz | -73dBc |
| Gain | 65dB Δ15dB 0.5dB step |
| AC/DC Power | +24VDC 90W |
