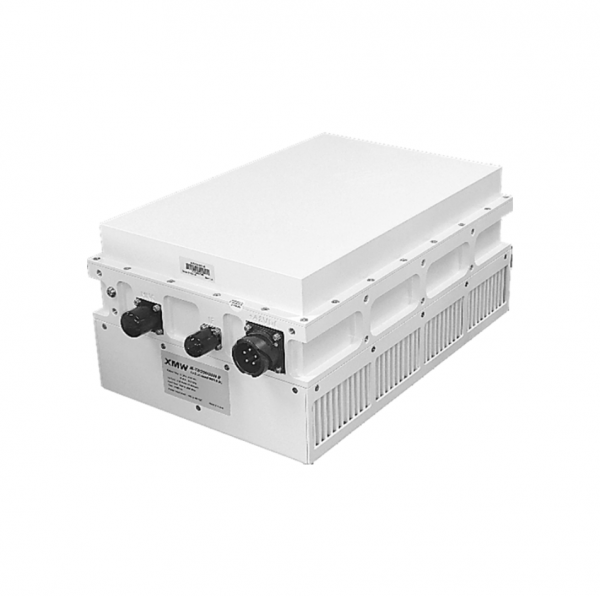

Ka Tri-band 80W BUC Mobility
| Part number | M-TT2980 |
|---|---|
| Input Frequency | 950 - 1950 MHz for each band |
| LO Frequency | 26.55 GHz 27.3 GHz 28.05 GHz |
| Output Frequency | 27.5 - 28.5 GHz 28.25 - 29.25 GHz 29.0 - 30.0 GHz |
| Output Power | 80W (49dBm) @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 73dB Δ15dB 0.5dB step |
| AC/DC Power | +48VDC 500W |
M-TT2980
Ka Tri-band 80W BUC
Mobility
Ka Tri-band 80W BUC
Mobility
