Ku Dual-band 40W BUC Mobility
| Part number | M-TD1340G |
|---|---|
| Input Frequency | 950 - 1450 MHz 950 - 1700 MHz |
| LO Frequency | 11.8 GHz 12.8 GHz |
| Output Frequency | 12.75 - 13.25 GHz 13.75 - 14.5 GHz |
| Output Power | 40W (46dBm) @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 70dB Δ15dB 1dB step |
| AC/DC Power | +48VDC 280W |

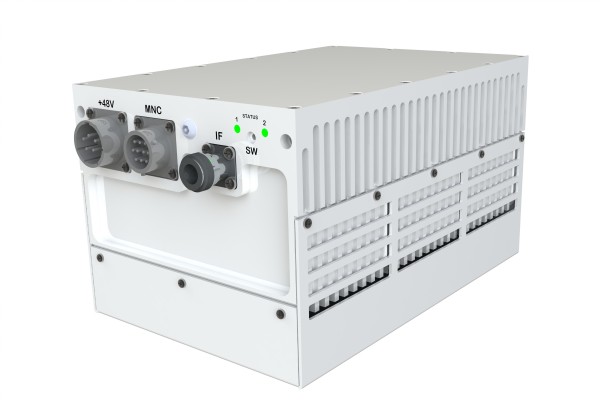

Ku Dual-band 40W BUC
M-TD1340
M-TD1340
첨부파일
- Ku Dual-band 40W BUC_M-TD1340_V1.1_2608.pdf (339.5K) 25회 다운로드 | DATE : 2026-08-25 16:54:19
