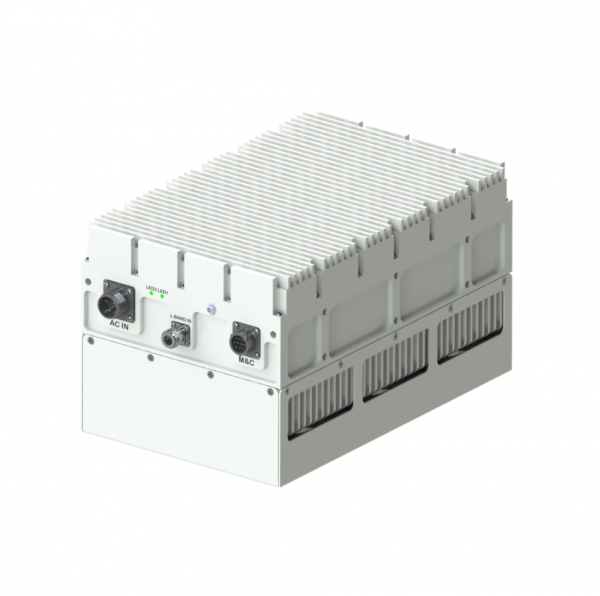

C-band 200W BUC (GaN)
| Part number | T50200GA-I T51200GA-I T52200GA-I T53200GA-I T54200GA-I |
|---|---|
| Input Frequency | 950 - 1525 MHz 950 - 1750 MHz 950 - 1825 MHz 950 - 1750 MHz 975 - 1475 MHz |
| LO Frequency | 4.9 GHz 4.9 GHz 4.9 GHz 4.775GHz 4.75GHz |
| Output Frequency | 5.85 - 6.425 GHz 5.85 - 6.65 GHz 5.85 - 6.725 GHz 5.725 - 6.525 GHz 5.725 - 6.225 GHz |
| Output Power | 200W (53dBm) @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 75dB Δ15dB 0.5dB step |
| AC/DC Power | 180VAC 1000W |
C-band 200W BUC (GaN)
T50200GA-I, T51200GA-I, T52200GA-I, T53200GA-I, T54200GA-I
T50200GA-I, T51200GA-I, T52200GA-I, T53200GA-I, T54200GA-I
첨부파일
- C-band 200W BUC_T50200GA-IT51200GA-I,T52200GA-I,T53200GA-I,T54200GA-I_V1.0_2608.pdf (514.5K) 6회 다운로드 | DATE : 2026-08-25 17:01:01
