Ka Tri-band 40W BUC Mobility
| Part number | M-TT2940 |
|---|---|
| Input Frequency | 950 - 1950 MHz for each band |
| LO Frequency | 26.55 GHz 27.3 GHz 28.05 GHz |
| Output Frequency | 27.5 - 28.5 GHz 28.25 - 29.25 GHz 29.0 - 30.0 GHz |
| Output Power | 40W (46dBm) @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 70dB Δ15dB 0.5dB step |
| AC/DC Power | 250W @Plin |

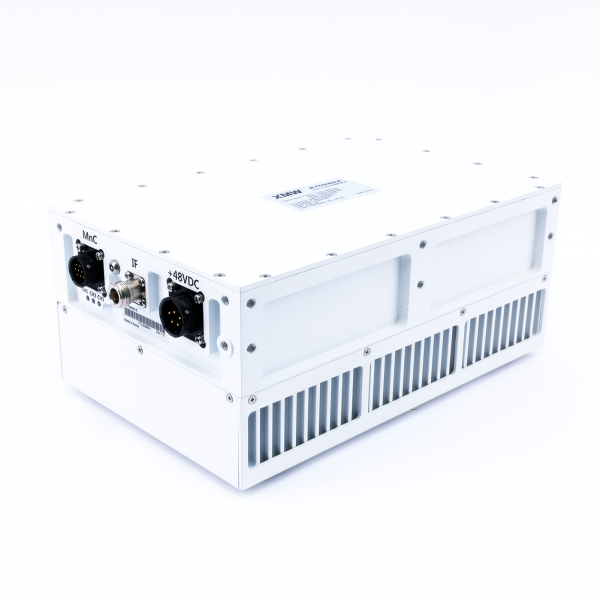

M-TT2940
Ka Tri-band 40W BUC
Mobility
Ka Tri-band 40W BUC
Mobility
첨부파일
- Ka Tri-band 40W BUC_M-TT2940_V1.5_2608.pdf (478.7K) 179회 다운로드 | DATE : 2026-08-25 16:47:03
