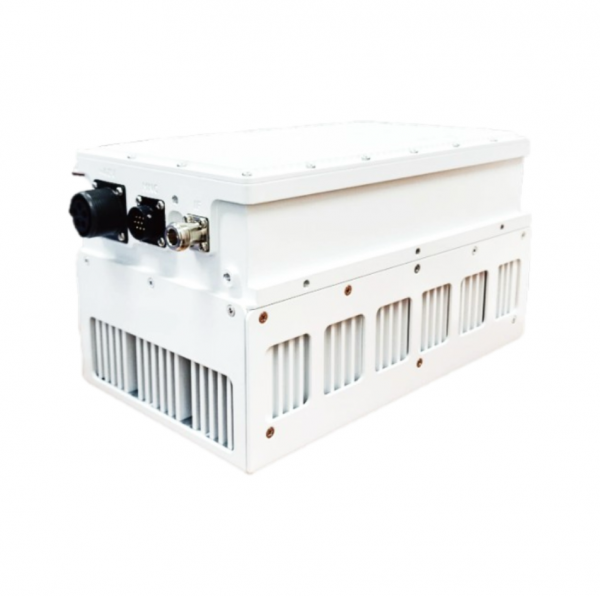

C-band 100W BUC (GaN)
| Part number | T50100 T51100 T52100 T53100 |
|---|---|
| Input Frequency | 950-1525MHz 950-1750MHz 950-1825MHz 950-1750MHz |
| LO Frequency | 4.900GHz 4.900GHz 4.900GHz 4.775GHz |
| Output Frequency | 5.850-6.425GHz 5.850-6.650GHz 5.850-6.725GHz 5.725-6.525GHz |
| Output Power | 100W (50dBm) |
| Phase Noise @1KHz | -82dBc |
| Gain | 80dB Δ15dB 0.5dB step |
| DC Power | +48VDC 500W |
C-band 100W BUC (GaN)
첨부파일
- C-band 100W BUC_T50100T51100,T52100,T53100_V1.0_2401.pdf (348.7K) 33회 다운로드 | DATE : 2024-08-13 17:02:41
