Ku-band 100W BUC (GaN)
| Part number | T13100 T14100 |
|---|---|
| Input Frequency | 950-1700MHz 950-1450MHz |
| LO Frequency | 12.80GHz 13.05GHz |
| Output Frequency | 13.75-14.50GHz 14.00-14.50GHz |
| Output Power | 100W (50dBm) |
| Phase Noise @1KHz | -80dBc |
| Gain | 80dB Δ15dB 1dB step |
| DC Power | +48VDC 650W |

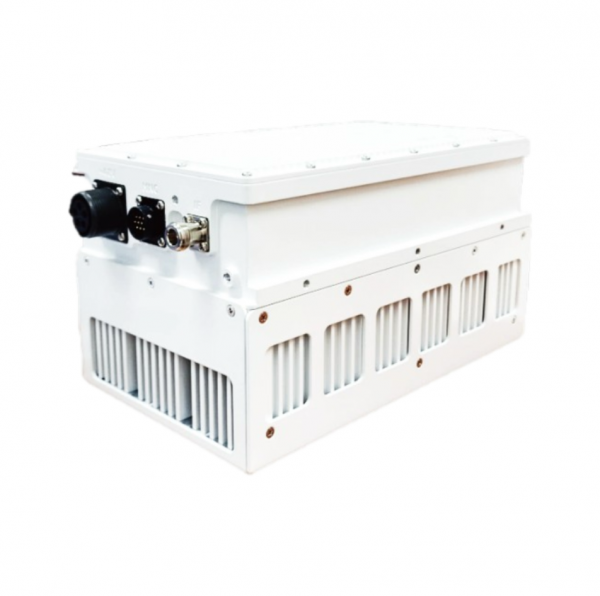

Ku-band 100W BUC (GaN) T13100, T14100
첨부파일
- Ku-band 100W BUCGaN_T13100T14100_V1.0_2303.pdf (266.8K) 26회 다운로드 | DATE : 2024-05-17 17:55:24
