BUC 1:1 C-band 20W
| Part number | RDT5020 RDT5120 RDT5220 RDT5320 |
|---|---|
| Configuration | BUC 1:1 C-band 20W |
| Input Frequency | 950 - 1525 MHz 950 - 1750 MHz 950 - 1825 MHz 950 - 1750 MHz |
| LO Frequency | 4.9 GHz 4.9 GHz 4.9 GHz 4.775 GHz |
| Output Frequency | 5.85 - 6.425 GHz 5.85 - 6.65 GHz 5.85 - 6.725 GHz 5.725 - 6.525 GHz |
| Output Power | 43dBm @P1dB |
| Phase Noise @1KHz | -73dBc |
| Gain | 70dB |
| Power | +48VDC 160W |
RDT5020,
RDT5120,
RDT5220,
RDT5320

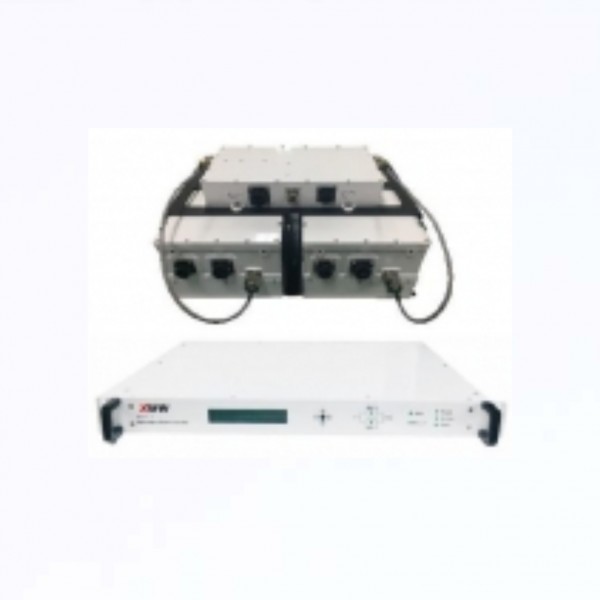

BUC 1:1 C-band 20W
RDT5120,
RDT5220,
RDT5320
BUC 1:1 C-band 20W
첨부파일
- C-band 20W BUC 1-1 System_RDT5020RDT5120, RDT5220, RDT5320_V1.1_2502.pdf (729.0K) 25회 다운로드 | DATE : 2025-02-21 13:13:54
