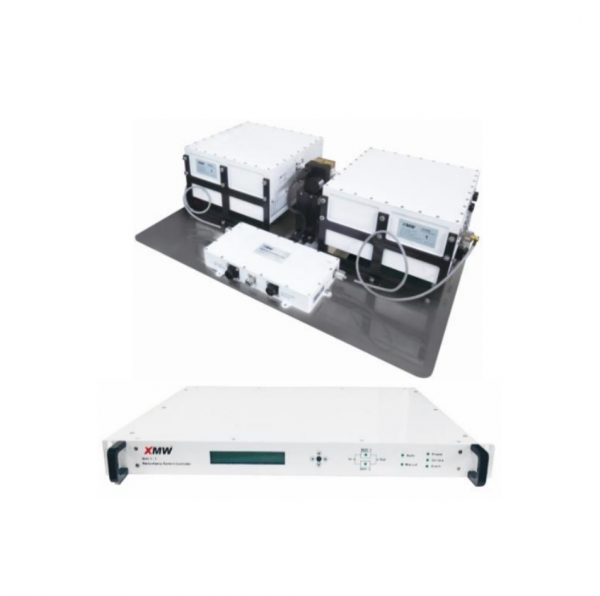

BUC 1:1 Ka-band 40W
| Part number | RDT2940 RDT29E40 RDT3040 |
|---|---|
| Configuration | BUC 1:1 Ka-band 40W |
| Input Frequency | 950 - 1450 MHz 1000 - 2000 MHz 1000 - 2000 MHz |
| LO Frequency | 28.55 GHz 28.0 GHz 29.0 GHz |
| Output Frequency | 29.5 - 30.0 GHz 29.0 - 30.0 GHz 30.0 - 31.0 GHz |
| Output Power | 46dBm @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 70dB |
| Power | +48VDC 480W |
RDT2940,
RDT29E40,
RDT3040
BUC 1:1 Ka-band 40W
RDT29E40,
RDT3040
BUC 1:1 Ka-band 40W
첨부파일
- Ka-band 40W BUC 1-1 System RDT2940RDT29E40, RDT3040_V1.3_2502.pdf (491.6K) 399회 다운로드 | DATE : 2025-02-21 11:39:34
