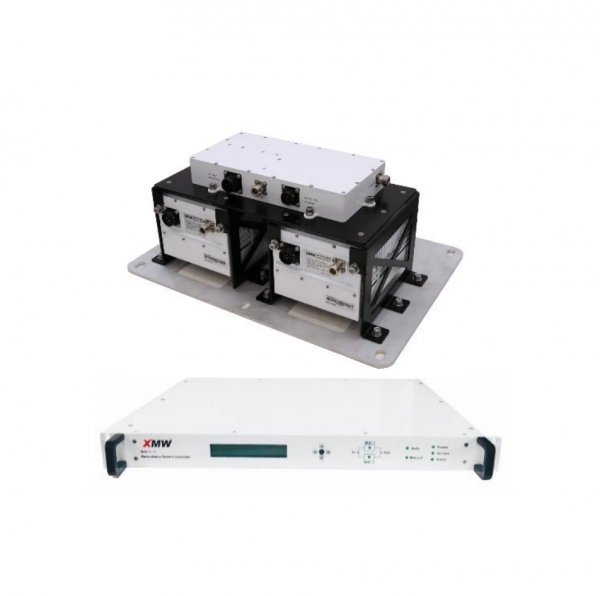

BUC 1:1 Ka Dual-band 20W
| Part number | RDTD3020 |
|---|---|
| Configuration | BUC 1:1 Ka Dual-band 20W |
| Input Frequency | 1000 - 2000 MHz for each band |
| LO Frequency | 28.0 GHz 29.0 GHz |
| Output Frequency | 29.0 - 30.0 GHz 30.0 - 31.0 GHz |
| Output Power | 43dBm @Psat |
| Phase Noise @1KHz | -73dBc |
| Gain | 70dB |
| Power | +48VDC 250W |
RDTD3020
BUC 1:1 Ka Dual-band 20W
BUC 1:1 Ka Dual-band 20W
첨부파일
- Ka Dual-band_20W BUC 1-1 System_RDTD3020_V1.1_2502.pdf (596.8K) 399회 다운로드 | DATE : 2025-02-21 11:38:17
